Solid hw spiral router cutters z=1 (finish cut)
Material
For boring and sizing on solid wood, chipboard and fibre materials (MDF - HDF).
Product for
CNC router.
Packaging
Dx/Rh Z=1. Manufactured with micrograin solid carbide. With 1 positive spiral cutting edge for an excellent finishing on the bottom of the workpiece. Upward chip evacuation. Up-cut spiralDx/Rh Z=1. Manufactured with micrograin solid carbide. With 1 positive spiral cutting edge for an excellent finishing on the bottom of the workpiece. Upward chip evacuation. Up-cut spiral
Slide the table to the right

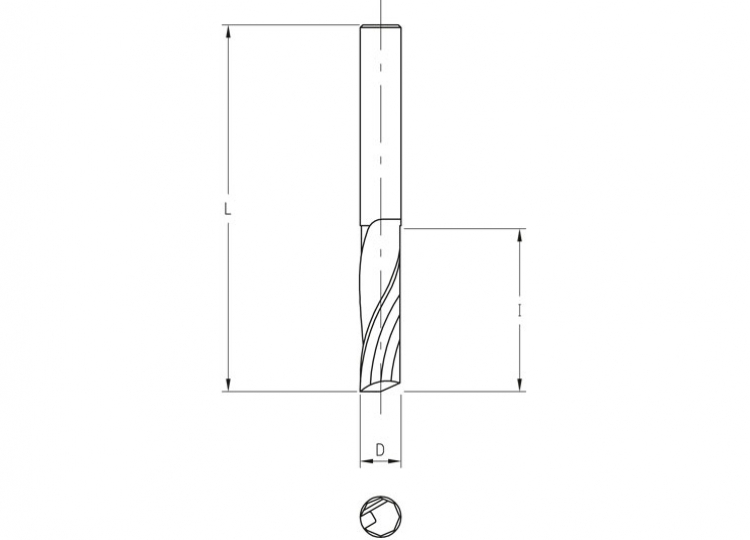

| Code | D | I | L | |
|---|---|---|---|---|
| Code | D | I | L | |
| 4171 030 012 | 3 | 12 | 50 | Dx |
| 4171 040 015 | 4 | 15 | 50 | Dx |
| 4171 050 017 | 5 | 17 | 50 | Dx |
| 4171 050 022 | 5 | 22 | 60 | Dx |
| 4171 060 022 | 6 | 22 | 60 | Dx |
| 4171 080 022 | 8 | 22 | 70 | Dx |
| 4171 080 032 | 8 | 32 | 80 | Dx |
| 4171 100 032 | 10 | 32 | 80 | Dx |
| 4171 100 042 | 10 | 42 | 100 | Dx |
| 4171 120 032 | 12 | 32 | 80 | Dx |
| 4171 120 042 | 12 | 42 | 100 | Dx |
Solid hw spiral router cutters z=1 (finish cut)
