Solid hw spiral router cutters z=1 (finish cut)
Material
For boring and sizing on solid wood, chipboard and fibre materials (MDF - HDF).
Product for
CNC router.
Packaging
Sx/Lh Z=1. Manufactured with micrograin solid carbide. With 1 positive spiral cutting edge for an excellent finishing on the top of the workpiece. Chip evacuation towards the bottom. Down-cut spiralSx/Lh Z=1. Manufactured with micrograin solid carbide. With 1 positive spiral cutting edge for an excellent finishing on the top of the workpiece. Chip evacuation towards the bottom. Down-cut spiral
Slide the table to the right

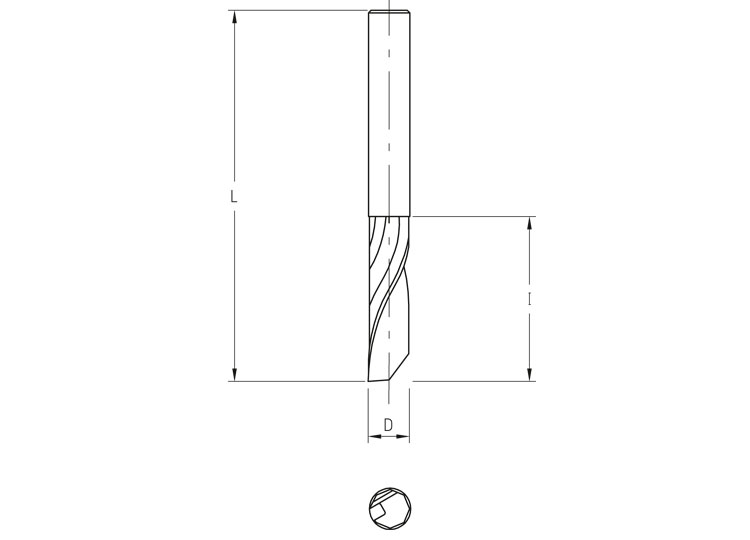

| Code | D | I | L | |
|---|---|---|---|---|
| Code | D | I | L | |
| 4174 030 012 | 3 | 12 | 50 | Sx |
| 4174 040 015 | 4 | 15 | 50 | Sx |
| 4174 050 017 | 5 | 17 | 50 | Sx |
| 4174 050 022 | 5 | 22 | 60 | Sx |
| 4174 060 022 | 6 | 22 | 60 | Sx |
| 4174 080 022 | 8 | 22 | 70 | Sx |
| 4174 080 032 | 8 | 32 | 80 | Sx |
| 4174 100 032 | 10 | 32 | 80 | Sx |
| 4174 100 042 | 10 | 42 | 100 | Sx |
| 4174 120 032 | 12 | 32 | 80 | Sx |
| 4174 120 042 | 12 | 42 | 100 | Sx |
Solid hw spiral router cutters z=1 (finish cut)
