6278 - 6279

Diamond grooving cutters (recessed body).

Diamonds Tools

Material

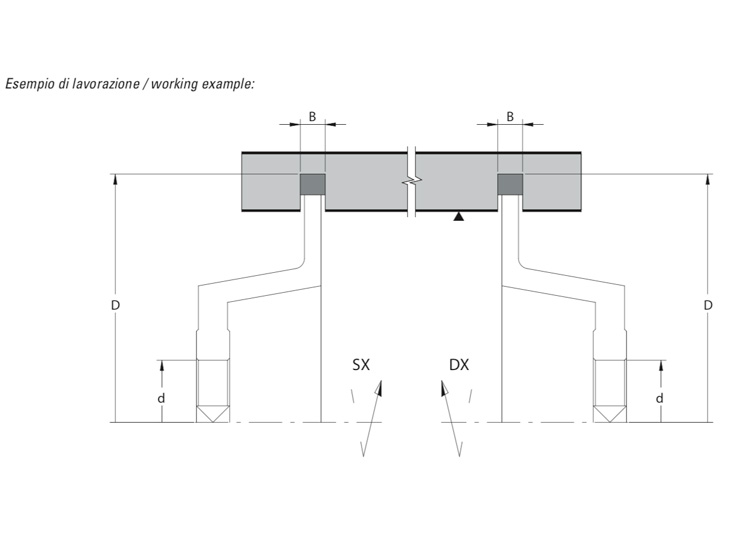

Grooving on raw or coated chipboard, MDF, HDF panels.

Product for

Double-end tenoners, edge trimming machines.

Packaging

Produced with special steel body. Bevelled teeth shape for excellent finishing and longer cutting life.

mec DP

More info

Slide the table to the right

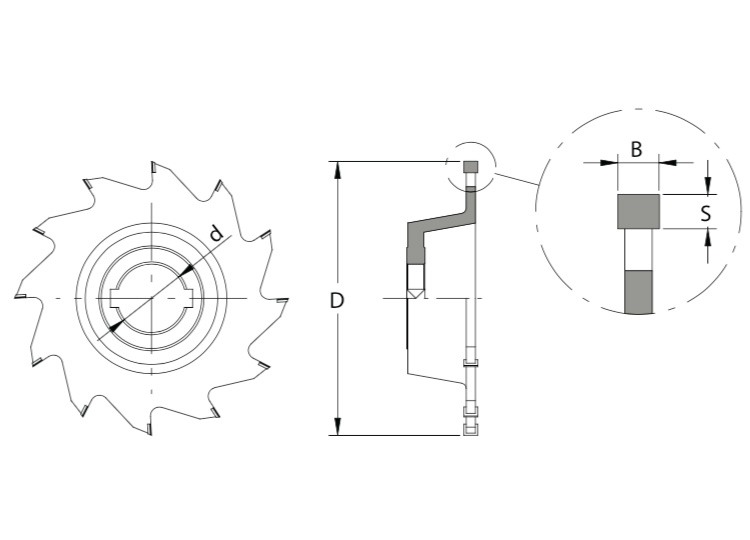

Code	Description	D	B	DKN	Z	S	Rpm max
Code	Description	D	B	DKN	Z	S	Rpm max
6278 120 004	Rotazione Dx	120	4	30-35-40	8	5	11000
6279 120 004	Rotazione Sx	120	4	30-35-40	8	5	11000
6278 120 005	Rotazione Dx	120	5	30-35-40	8	5	11000
6279 120 005	Rotazione Sx	120	5	30-35-40	8	5	11000
6278 120 006	Rotazione Dx	120	6	30-35-40	8	5	11000
6279 120 006	Rotazione Sx	120	6	30-35-40	8	5	11000
6278 150 004	Rotazione Dx	150	4	30-35-40	12	5	11000
6279 150 004	Rotazione Sx	150	4	30-35-40	12	5	11000
6278 150 005	Rotazione Dx	150	5	30-35-40	12	5	11000
6279 150 005	Rotazione Sx	150	5	30-35-40	12	5	11000
6278 150 006	Rotazione Dx	150	6	30-35-40	12	5	11000
6279 150 006	Rotazione Sx	150	6	30-35-40	12	5	11000
6278 150 008	Rotazione Dx	150	8	30-35-40	12	5	11000
6279 150 008	Rotazione Sx	150	8	30-35-40	12	5	11000
6278 180 004	Rotazione Dx	180	4	30-35-40	18	5	9000
6279 180 004	Rh Rotation	180	4	30-35-40	18	5	9000
6278 181 004	Lh Rotation	180	4	30-35-40	24	5	9000
6279 181 004	Rh Rotation	180	4	30-35-40	24	5	9000
6278 180 005	Lh Rotation	180	5	30-35-40	18	5	9000
6279 180 005	Rh Rotation	180	5	30-35-40	18	5	9000
6278 181 005	Lh Rotation	180	5	30-35-40	24	5	9000
6279 181 005	Rh Rotation	180	5	30-35-40	24	5	9000
6278 180 006	Lh Rotation	180	6	30-35-40	18	5	9000
6279 180 006	Rh Rotation	180	6	30-35-40	18	5	9000
6278 181 006	Lh Rotation	180	6	30-35-40	24	5	9000
6279 181 006	Rh Rotation	180	6	30-35-40	24	5	9000
6278 180 008	Lh Rotation	180	8	30-35-40	18	5	9000
6279 180 008	Rh Rotation	180	8	30-35-40	18	5	9000
6278 181 008	Lh Rotation	180	8	30-35-40	24	5	9000
6279 181 008	Rh Rotation	180	8	30-35-40	24	5	9000
