6295 - 6296

Edgebanding/chamfering diamond cutters.

Diamonds Tools

Material

Bevelled cut and trimming of the edge bands.

Product for

Edge trimming machines.

Packaging

Produced with 4 diamond cuts with shear angle. Excellent panel finishing and very good chip evacuation. Diamond tip H=2,5 mm. Constant base diameter = 62 mm. N. max 24.000 min^-1.

mec DP

More info

Do you want to customize this product?
If you have a specific need, fill out the request, click here

Slide the table to the right

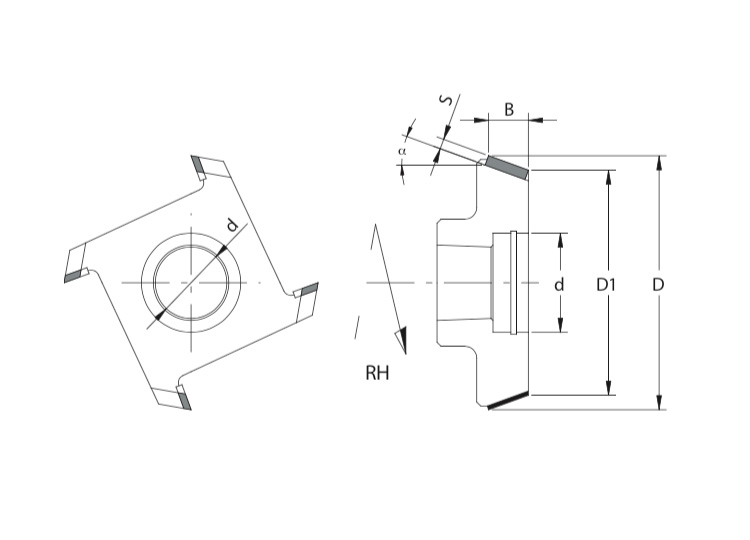

Code	Description	D	D1	B	d	α°	Z	S
Code	Description	D	D1	B	d	α°	Z	S
6295 005 000	Lh Rotation	63	62	10	HSK25R	5°	4	2,5
6296 005 000	Rh Rotation	63	62	10	HSK25R	5°	4	2,5
6295 020 000	Lh Rotation	64	62	10	HSK25R	20°	4	2,5
6296 020 000	Rh Rotation	64	62	10	HSK25R	20°	4	2,5
6295 030 000	Lh Rotation	66	62	10	HSK25R	30°	4	2,5
6296 030 000	Rotazione Sx	66	62	10	HSK25R	30°	4	2,5
6295 045 000	Rotazione Dx	74	62	10	HSK25R	45°	4	2,5
6296 045 000	Rh Rotation	74	62	10	HSK25R	45°	4	2,5
