6325 - 6326

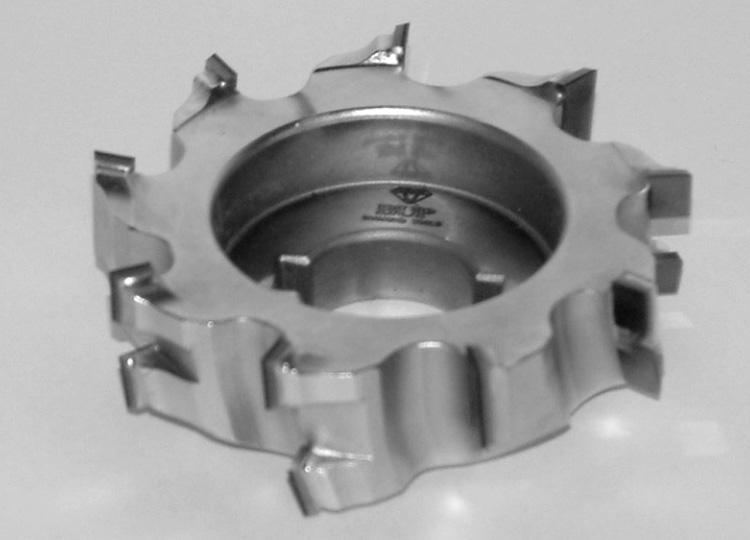

Post-forming diamond cutter.
Diamonds Tools
Material
Panel raising cutter of top layer of the panel in the postforming process.
Product for
Postforming automatic lines.
Packaging
Manufactured with 9+3 diamond splitted cutting edges with shear angle for the excellent finishing of the panel. Application with the feed. Diamond H=5 mm. N. max 24.000 min-1.
Slide the table to the right

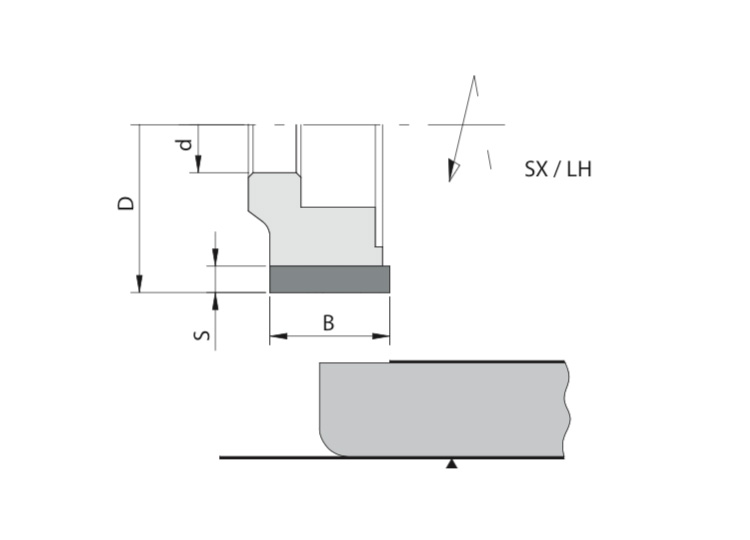

| Code | Description | D | B | d | Z | S |
|---|---|---|---|---|---|---|
| Code | Description | D | B | d | Z | S |
| 6325 070 025 | Lh Rotation | 70 | 25 | 20DKN | 9+3 (12) | 6 |
| 6326 070 025 | Rh Rotation | 70 | 25 | 20DKN | 9+3 (12) | 6 |
| 6325 070 125 | Lh Rotation | 70 | 25 | HSK25R | 9+3 (12) | 6 |
| 6326 070 125 | Rh Rotation | 70 | 25 | HSK25R | 9+3 (12) | 6 |
| 6325 080 025 | Lh Rotation | 80 | 25 | 20DKN | 9+3 (12) | 6 |
| 6326 080 025 | Rh Rotation | 80 | 25 | 20DKN | 9+3 (12) | 6 |
