2420

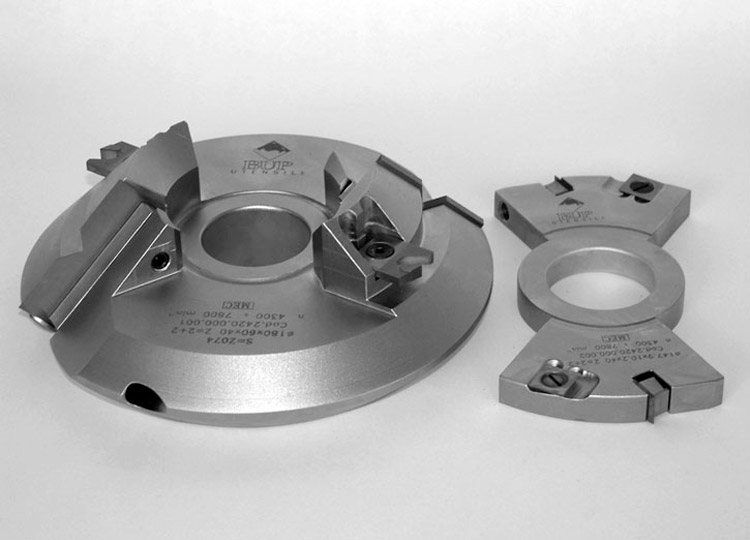

Mitre joint cutterheads 45°
Cutter Heads
Material

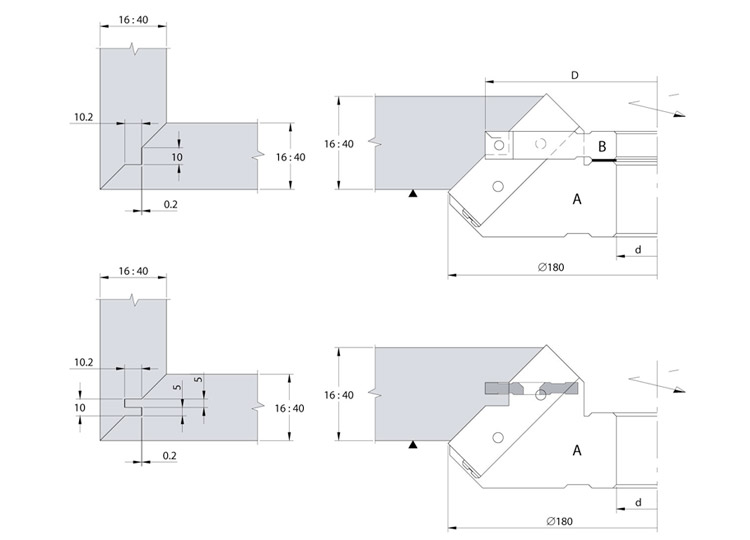

Production of 45° lock mitre joint.
Product for
Shapers.
Packaging
Manufactured with solid carbide micrograin knives. The mitre joint is done in two steps, first with workpiece in horizontal position and then with workpiece in vertical position. n 4.300/7.800 min-1 Foro d.max 50 mm (please state on the order).
Slide the table to the right
| Code | D | Type | H | Key | Knife | Wedge | Spur | Groove insert | Screw | Spur screw | Insert screw |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | D | Type | H | Key | Knife | Wedge | Spur | Groove insert | Screw | Spur screw | Insert screw |
| 2420 000 001 | 180 | B | 16.40 | 8350.040.000 | 8170.060.025 | 8280.560.000 | 8142.050.025 | 8285.008.000 | 8305.005.000 | ||
| 2420 000 002 | 148 | 8350.040.000 | 8108.120.012 | 8280.100.000 | 8120.140.002 | 8285.008.000 | 8295.005.000 |
See page 1 of 1
