6300 - 6301

Edgebanding/rounding diamond cutters.

Diamonds Tools

Material

Rounding of panels with solid wood or plastic band.

Product for

Edge trimming machines.

Packaging

Produced with 4 diamond cuts with shear angle. Excellent panel finishing and very good chip evacuation. Diamond tip H=2,5 mm. Constant D1 base diameter. N. max 24.000 min^-1.

mec DP

More info

Do you want to customize this product?
If you have a specific need, fill out the request, click here

Slide the table to the right

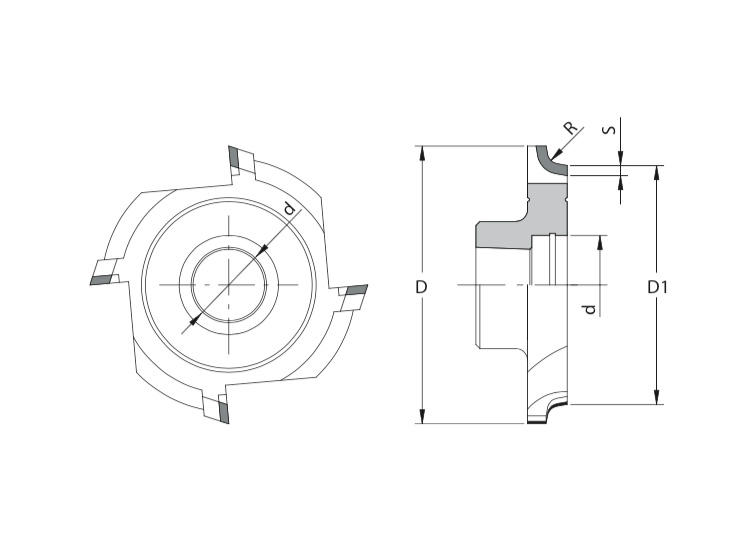

Code	Description	D	D1	d	R	Z	S
Code	Description	D	D1	d	R	Z	S
6300 061 010	Lh Rotation	66	61	16DKN	1	4	2,5
6301 061 010	Rh Rotation	66	61	16DKN	1	4	2,5
6300 061 020	Lh Rotation	68	61	16DKN	2	4	2,5
6301 061 020	Rh Rotation	68	61	16DKN	2	4	2,5
6300 061 030	Lh Rotation	70	61	16DKN	3	4	2,5
6301 061 030	Rh Rotation	70	61	16DKN	3	4	2,5
6300 061 120	Lh Rotation	68	61	20DKN	2	4	2,5
6301 061 120	Rh Rotation	68	61	20DKN	2	4	2,5
6300 061 130	Lh Rotation	70	61	20DKN	3	4	2,5
6301 061 130	Rh Rotation	70	61	20DKN	3	4	2,5
6300 062 010	Lh Rotation	68	62	HSK25R	1	4	2,5
6301 062 010	Rh Rotation	68	62	HSK25R	1	4	2,5
6300 062 020	Lh Rotation	70	62	HSK25R	2	4	2,5
6301 062 020	Rh Rotation	70	62	HSK25R	2	4	2,5
6300 062 030	Lh Rotation	72	62	HSK25R	3	4	2,5
6301 062 030	Rh Rotation	72	62	HSK25R	3	4	2,5
6300 062 040	Lh Rotation	74	62	HSK25R	4	4	2,5
6301 062 040	Rh Rotation	74	62	HSK25R	4	4	2,5
6300 062 050	Lh Rotation	76	62	HSK25R	5	4	2,5
6301 062 050	Rh Rotation	76	62	HSK25R	5	4	2,5
6300 070 010	Lh Rotation	74	70	HSK25R	1	4	2,5
6301 070 010	Rh Rotation	74	70	HSK25R	1	4	2,5
6300 070 020	Lh Rotation	78	70	HSK25R	2	4	2,5
6301 070 020	Rh Rotation	78	70	HSK25R	2	4	2,5
6300 070 030	Lh Rotation	80	70	HSK25R	3	4	2,5
6301 070 030	Rh Rotation	80	70	HSK25R	3	4	2,5
6300 070 040	Lh Rotation	82	70	HSK25R	4	4	2,5
6301 070 040	Rh Rotation	82	70	HSK25R	4	4	2,5
6300 070 050	Lh Rotation	84	70	HSK25R	5	4	2,5
6301 070 050	Rh Rotation	84	70	HSK25R	5	4	2,5
6300 070 060	Lh Rotation	86	70	HSK25R	6	4	2,5
6301 070 060	Rh Rotation	86	70	HSK25R	6	4	2,5
6300 070 080	Lh Rotation	89	70	HSK25R	8	4	2,5
6301 070 080	Rh Rotation	89	70	HSK25R	8	4	2,5
6300 070 090	Lh Rotation	92	70	HSK25R	9	4	2,5
6301 070 090	Rh Rotation	92	70	HSK25R	9	4	2,5
6300 070 100	Lh Rotation	94	70	HSK25R	10	4	2,5
6301 070 100	Rh Rotation	94	70	HSK25R	10	4	2,5
6300 070 120	Lh Rotation	98	70	HSK25R	12	4	2,5
6301 070 120	Rh Rotation	98	70	HSK25R	12	4	2,5
6300 070 140	Lh Rotation	102	70	HSK25R	14	4	2,5
6301 070 140	Rh Rotation	102	70	HSK25R	14	4	2,5
