4180
Solid hw spiral router cutters z=2 (finish cut)
Precision tools for CNC machines-CNC router HW cutters
Material
For boring and sizing on solid wood, chipboard and fibre materials (MDF - HDF).
Product for
CNC router.
Packaging

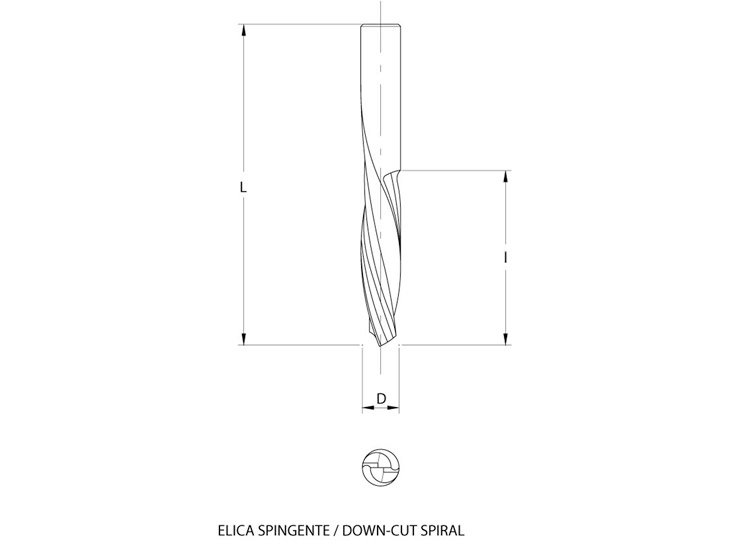

Dx/Rh Z=2. Manufactured with micrograin solid carbide. With 2 negative spiral cutting edges for an excellent finishing on the top of the workpiece. Chip evacuation towards the bottom. Down-cut spiral
Slide the table to the right
| Code | D | I | L |
|---|---|---|---|
| Code | D | I | L |
| 4180 030 012 | 3 | 12 | 40 |
| 4180 040 012 | 4 | 15 | 40 |
| 4180 050 017 | 5 | 16 | 50 |
| 4180 060 017 | 6 | 17 | 50 |
| 4180 060 027 | 6 | 25 | 60 |
| 4180 080 022 | 8 | 22 | 63 |
| 4180 080 032 | 8 | 32 | 72 |
| 4180 100 032 | 10 | 32 | 72 |
| 4180 100 042 | 10 | 42 | 100 |
| 4180 120 032 | 12 | 32 | 73 |
| 4180 120 042 | 12 | 42 | 100 |
| 4180 120 052 | 12 | 52 | 100 |
| 4180 140 042 | 14 | 42 | 100 |
| 4180 140 052 | 14 | 52 | 100 |
| 4180 160 042 | 16 | 42 | 100 |
| 4180 160 052 | 16 | 52 | 100 |
| 4180 160 062 | 16 | 62 | 106 |
| 4180 180 052 | 18 | 52 | 100 |
| 4180 180 072 | 18 | 75 | 125 |
| 4180 200 052 | 20 | 52 | 100 |
| 4180 200 072 | 20 | 75 | 125 |
