V-groove cutterheads
Material
V-grooving of MDF of chipboard PVC coated panels for foulding assembly system.V-grooving of MDF of chipboard PVC coated panels for foulding assembly system.V-grooving of MDF of chipboard PVC coated panels for foulding assembly system.V-grooving of MDF of chipboard PVC coated panels for foulding assembly system.V-grooving of MDF of chipboard PVC coated panels for foulding assembly system.
Packaging

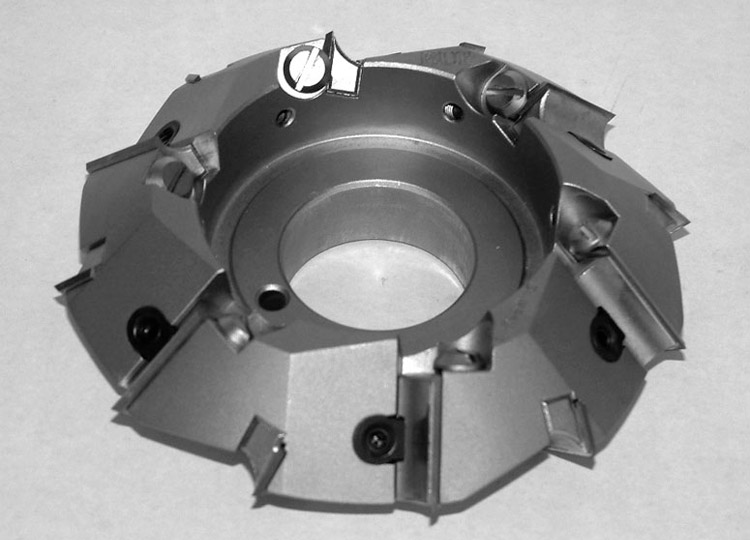

Cutter body made by high resistance ERGAL light alloy. Manufactured with 3+3 or 6+6 cutting edges It use solid carbide micrograin reversible knives mm 30x12x1,5 sharped 4 sides to obtain a perfect finishing and a very good 90° workpiece assembly. n. max 9.000 min-1
Slide the table to the right

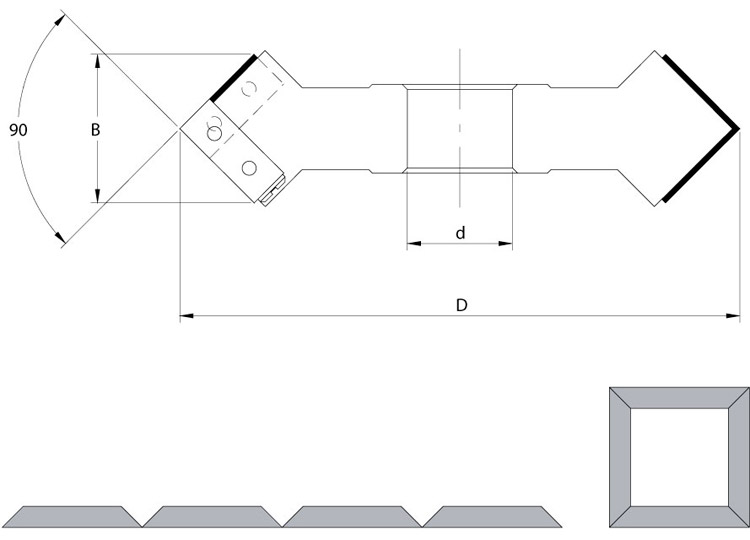

| Code | D | B | Z | Knife | Wedge | Screw | Nut |
|---|---|---|---|---|---|---|---|
| Code | D | B | Z | Knife | Wedge | Screw | Nut |
| 2210 160 000 | 160 | 42 | 3+3 | 8020/8021 | 8282.260.000 | 8285.008.000 | 8287.150.000 |
| 2210 160 001 | 160 | 42 | 6+6 | 8020/8021 | 8282.260.000 | 8286.010.000 | 8287.150.000 |
V-groove cutterheads
