Cnc straight router cutters

Precision tools for CNC machines

Material

Cutting and grooving router bit

Product for

CNC router, manual routers.

Packaging

Art. 4145 - d=10 mm. Manufactured by micrograin solid carbide up to d. 10. From d. 12 made with brazed HW. Produced with 2 straight cutting edges plus end cut for plunging. RPM 16.000-30.000 min¹.Art. 4145 - d=10 mm. Manufactured by micrograin solid carbide up to d. 10. From d. 12 made with brazed HW. Produced with 2 straight cutting edges plus end cut for plunging. RPM 16.000-30.000 min¹.
* Solid carbide

z2 hw

More info

Do you want to customize this product?
If you have a specific need, fill out the request, click here

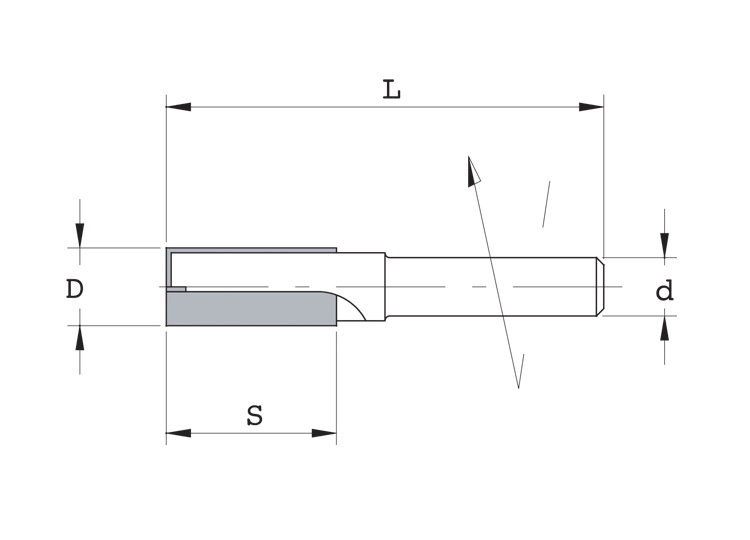

Slide the table to the right

Code	D	S	L
Code	D	S	L
4145 040 013 *	4	13	49
4145 050 015 *	5	15	49
4145 060 016 *	6	16	53
4145 070 020 *	7	20	55
4145 080 023 *	8	23	60
4145 100 023 *	10	23	70
4145 100 040 *	10	40	87
4145 120 023	12	23	70
4145 120 040	12	40	87
4145 140 023	14	23	70
4145 140 040	14	40	87
4145 150 023	15	23	70
4145 160 023	16	23	70
4145 160 045	16	45	87
4145 180 023	18	23	70
4145 180 045	18	45	87
4145 200 023	20	23	70
4145 200 045	20	45	87
4145 220 023	22	23	70
4145 240 023	24	23	70
