6260

Conical diamond scoring saw blades.

Diamonds Tools

Material

Raw and coated panels scoring process

Product for

Horizontal or vertical panel sizing machine with scoring saw.

Packaging

Special steel body to avoid vibrations and noise. Application with the feed, pinholes on request and machine specifications.

mec DP


Slide the table to the right

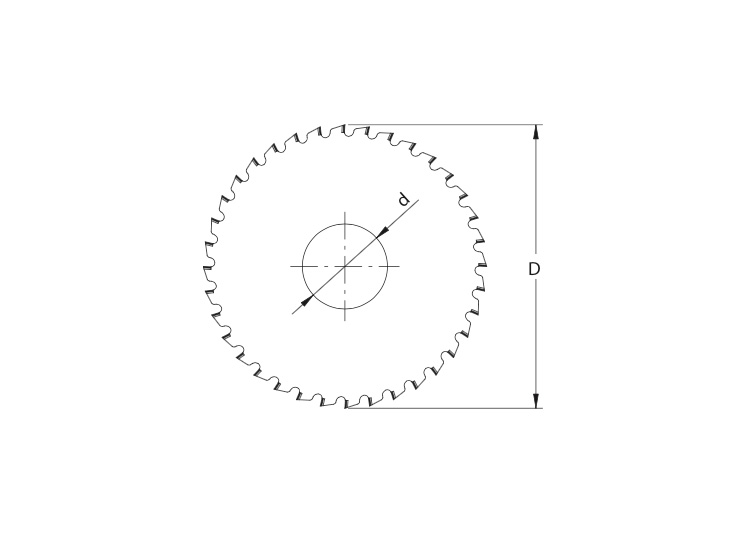

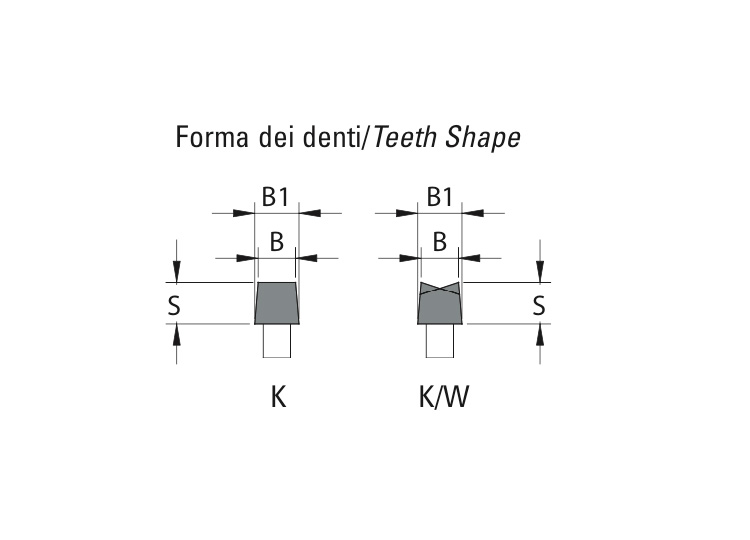

Code D B B1 d Z S Rpm max
Code D B B1 d Z S Rpm max
6260 125 001 125 3,1÷4,3 20-30 24 6 12000
6260 125 002 125 4,3÷5,4 20-30 24 6 12000
6260 150 001 150 4,3÷5,4 30-45 24 6 12000
6260 150 002 150 4,3÷5,4 30-45 32 6 12000
6260 160 001 160 4,3÷5,4 30-45 24 6 12000
6260 160 002 160 4,3÷5,4 30-45 36 6 12000
6260 180 001 180 4,3÷5,4 30-45 24 6 10000
6260 180 002 180 4,3÷5,4 30-45 36 6 10000
6260 200 001 200 4,3÷5,4 30-65 36 6 10000
6260 200 002 200 4,7÷5,5 30-65 36 6 10000
6260 215 001 215 4,3÷5,4 30-65 36 6 10000
6260 215 002 215 4,7÷5,5 30-65 36 6 10000
6260 300 001 300 4,3÷5,4 65+2 48 6 8000
6260 300 002 300 4,7÷5,5 65+2 48 6 8000
